***** THIS PAGE IS VERY MUCH WIP - PLEASE COME BACK LATER *****

The main difference between the driver we will use here, and the driver we used on the Pico is:

• The GPIO pins you pass into the driver.
• The SPI bus number (Zero uses SPI0 by default).

The Pico we used SPI bus 1

| download

spi = SPI(1, sck=Pin(10), mosi=Pin(11))
oled = SSD1306_SPI(128, 64, spi, dc=Pin(8), res=Pin(9), cs=Pin(12))

The Pico we used a different set of GPIO pins, so these references have to change on the Zero.

| download

spi = SPI(0, sck=Pin(2), mosi=Pin(3))
oled = SSD1306_SPI(128, 64, spi, dc=Pin(6), res=Pin(7), cs=Pin(5))

On the Zero, the SPI bus 1 pins are not exposed, so it cannot be used.

The wiring for the Zero is exactly the same as for the Pico, unfortunately there are two slight differences.

• 1. The GPIO Pins are different.
• 2. The Pico uses SPI1 and the Zero uses SPI0

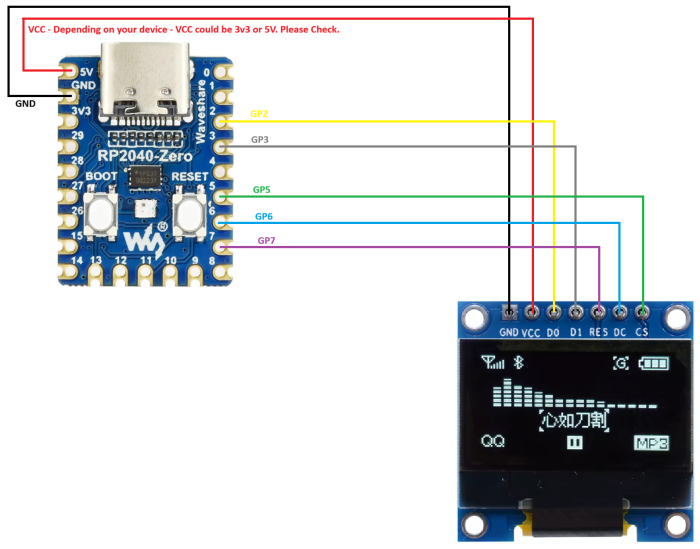

See the wiring below:


Once you have wired up your LCD, we can move on to the software.

You can download the driver here: ssd_1306_zero.zip you have to upload the driver to the \lib folder.

I am not going to talk about the driver because there isn't anything in there we need to change.

All this test code does is to print 8 lines of text with sequential numbers after them, the numbers keep incrementing one at a time. The test code is designed to ensure the LCD is working fine, not to provide any real functionality, that will be up to you once you get your LCD working.
